A1XY Unbox and Installation Guide

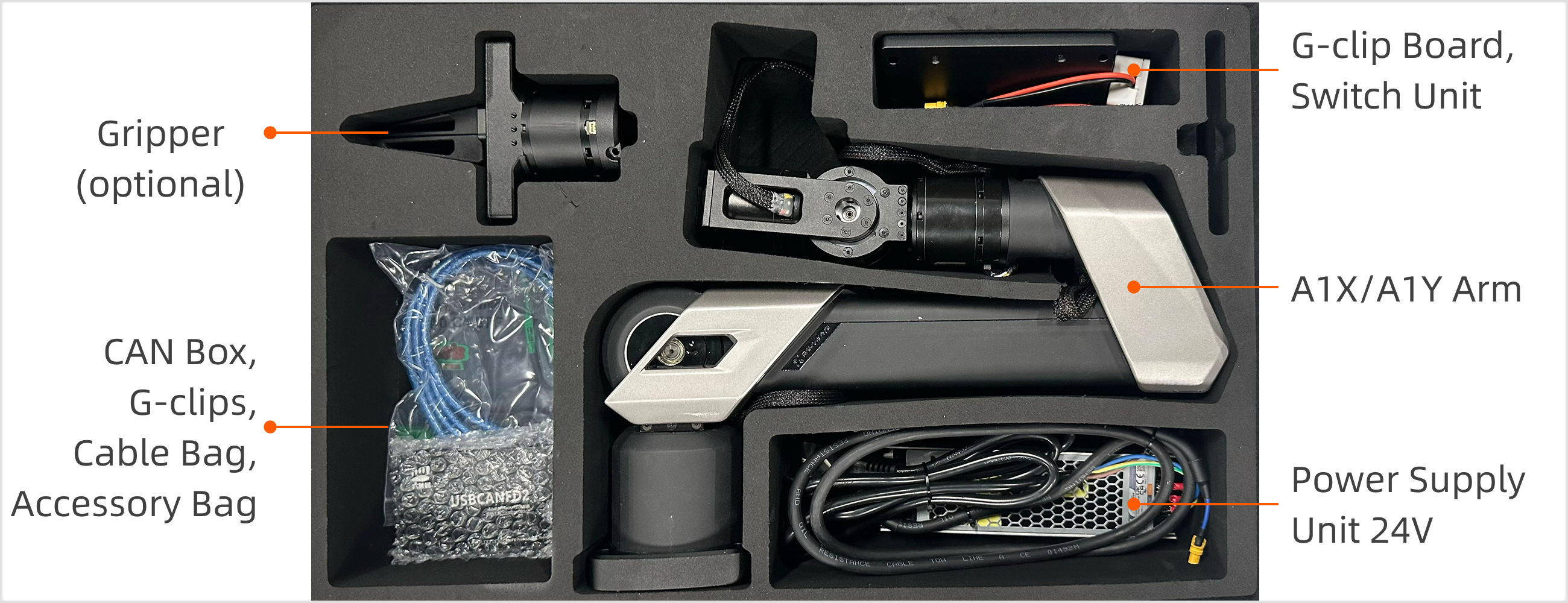

1. Item List Check
Upon receiving the product, check the contents of the box against the following list.
| Item | Quantity | Notes |
|---|---|---|
| A1X/A1Y Arm | 1 | - |
| Power Supply Unit | 1 | Rated Voltage: 24V |
| Switch Circuit | 1 | Used to power on and off the robot arm. |
| CAN Box | 1 | Used for communication. |
| CAN Cable | 1 | Used to connect the CAN box to the arm. |
| USB-CAN Adaptor Cable | 1 | Used to connect the CAN box to the PC. |
| G-clip | 2 | Used to secure the arm to the surface. |
| G-clip Adapter Plate | 1 | Used to position the robot arm on the plate and secure it to the desktop using G-clips. |
| L-hex Wrench | 1 | Used to secure the screws. |
| M6 Screw Bag | 1 | Used to secure the robot arm base to the G-clip adapter plate. |
Note: The A1XY robot arm does not include grippers in its standard configuration. If needed, please contact us to purchase additional grippers.
Also, prepare the following items:
| Item | Quantity | Notes |
|---|---|---|
| Host Computer | 1 | OS Dependency：Ubuntu 20.04 LTS Middleware Dependency: ROS Noetic |
Note: To ensure proper operation of the product, please place A1XY in a dry, well-ventilated environment and ensure there are no obstacles or hazardous materials around.
2. Installing the Arm
- Select a suitable installation platform, ensuring it is flat and stable, capable of withstanding the maximum load of the robot arm during operation.
- Clean the surface of the installation platform, removing debris, dust, and other substances that may affect installation stability, ensuring tight adhesion between the mounting base plate and the platform.
Follow these steps to install and secure the robot arm:
- Place the G-clip adapter plate on the selected installation platform or desktop, ensuring its position is appropriate for subsequent securing operations.
- Secure the adapter plate using G-clips.
- Carefully place the robot arm on the center of the adapter plate, ensuring the holes around the robot arm base accurately align with the holes on the G-clip adapter plate, and secure the robot arm using M6 screws.

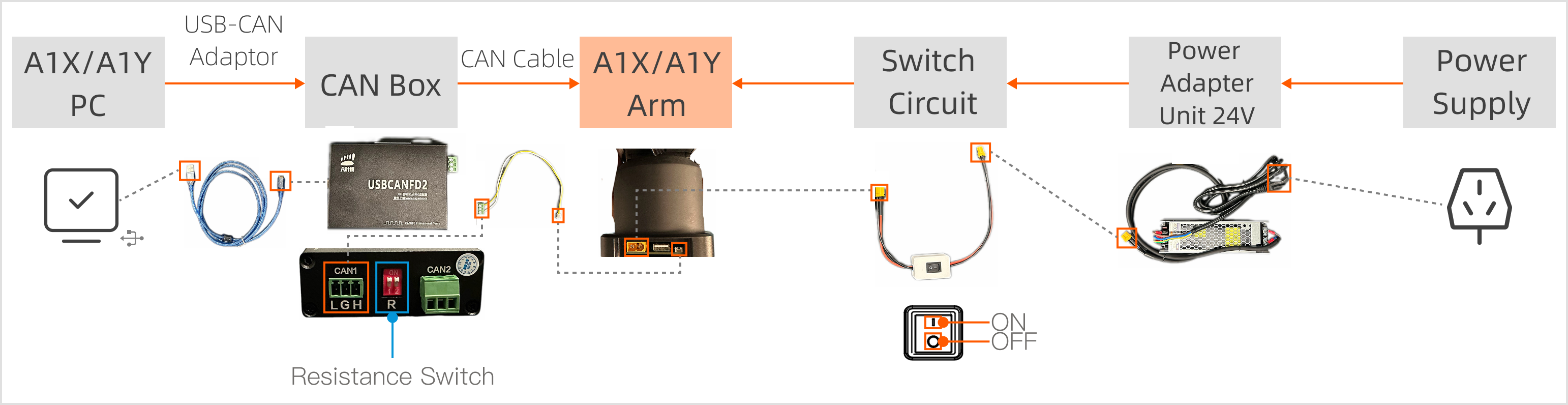

3. Connecting the Cables
- Connect the USB-CAN cable to the host computer and the CAN box.
- Connect both ends of the CAN cable from the wiring harness to the CAN interface on the robot arm base and the CAN1 interface on the CAN box, and set the termination switches R1 and R2 on the CAN box to the top position.
- Connect the two ends of the switch circuit to the power port on the robot arm base and the power adapter.
- Plug the power adapter into a power source.
After a successful connection, visit the A1XY Startup and Demo Guide to the next step.
